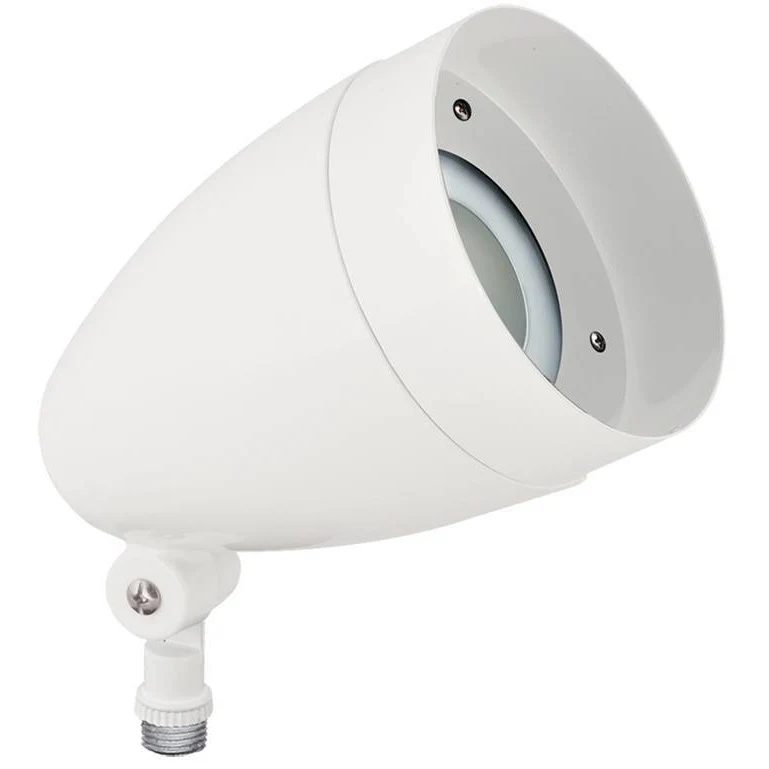

RAB Lighting - HBLED13 - 13W LED Bullet Floodlight—
$272.00
The Story
Bullet shape die cast aluminum flood with 13 Watt LED Light Engine. Comes with flood reflector installed. Optional spot reflector included for field installation.
Technical Specifications
Listings
- UL Listing: Suitable for wet locations. Suitable for ground mounting.
- IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label.
LED Characteristics
- Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
- Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
- Color Uniformity: RAB's range of CCT (Correlated color temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2008.
Construction
- Thermal Management: Cast aluminum patent pending Thermal Management system for optimal heat sinking. The LFLOOD is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
- Swivels: Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts. Stainless steel screw.
- Housing: Precision die cast aluminum housing.
- Gaskets: High Temperature Silicone.
- Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
- Green Technology: RAB LEDs are Mercury and UV free.
- Cold Weather Starting: The minimum starting temperature is -40°F/-40°C.
- Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures.
- LFLOOD 13W: LED Floodlight that reduces energy consumption by 85% compared to 100W PAR38. Spot and Flood beam patterns. Recommended for Residential and Commercial applications.
Electrical
- THD: 10% at 120V
- Power Factor: 98.6% at 120V
- Driver: Multi-chip 13W high output long life LED Driver Constant Current, 100V - 277V, 50/60 Hz.
- Surge Protection: 4KV
